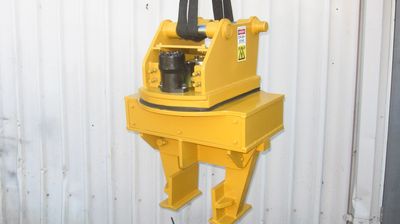

360 Rotating Sleeper Grab

Rotating Sleeper Grab Model: SGR-4:

Mass:  280kg +/- 5kg depending on head bracket

Dimensions: 600mm wide x 560mm long x 840mm high

Max. Jaw Length: 235mm

W.L.L: 750kg

Hydraulic Oil Flow: 10 to 40 lpm (jaws & rotator)

Max. Pressure: 210 bar both circuits

Clamping Force @ Max. Pressure: 40KN

Lubrication Points: Two @ jaw pivot

Ring & pinion gears lubricated with high pressure Molybdenum disulphide grease

Jaw Opening (Bottom): 300mm

Jaw Closed (Bottom): 160mm
